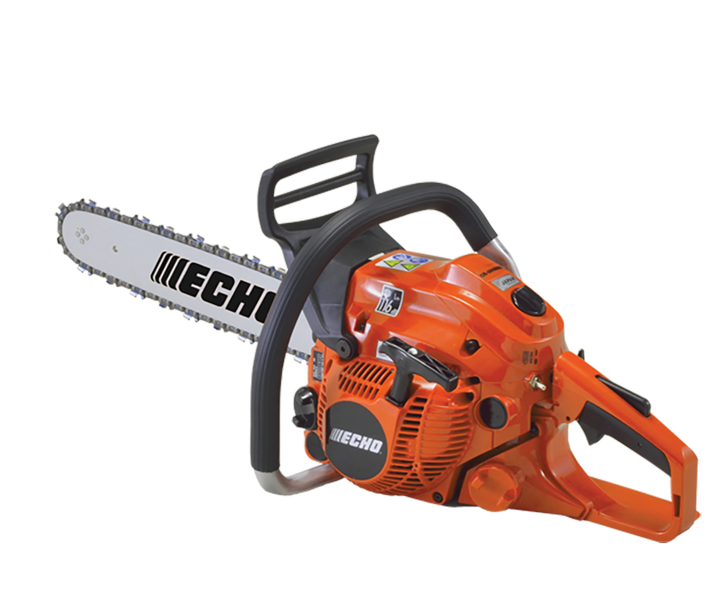

CS-390ESX

Balance and power. Professional rear handle petrol chain saw you can depend on. Fitted standard with 15" (38cm) guide bar^.

Scroll

Balance and power. Professional rear handle petrol chain saw.

Inboard clutch for easy maintenance and easy bar and chain replacement.

Featuring ECHO's patented G-FORCE air cleaner system & large air filter.

Unique chain tensioner for easy chain tension adjustment.

Super light-weight design with exceptional power.

Designed to maximise efficiency and comfort.

ECHO’s patented system for effortless starting.

Engine displacement (cm³)	38.4
Output (kw)	1.92
Output (ps)	2.61
Dry Weight (kg)	4.5
Fuel tank capacity (l)	0.42
Chain Oil Tank Capacity	215.000
Fuel Consumption At Maximum Engine Power (L/h)	1.17
Ignition System	CDI
Start Assist System	ES-start
Chain Brake	Inertia
Choke w/ Automatic Fast Idle Release	Yes
Chain Tensioner	Front
Saw Chain Pitch (inch)	0.325
Guide Bar Gauge (inch)	0.050(0.058)
Applicable Bar Length (cm/inch) ¹	33, 38 / 13, 15
Vibration Front handle/Rear handle (m/s²)	4.7 / 5.0
Sound power level (dB(A))	113.1
Sound pressure level (dB(A))	101.9
CO² (g/kW・h) ²	855

1: Not all lengths available in every country. Available bar lengths may incur differing RRPs. Please check with your local dealer.
2: This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
