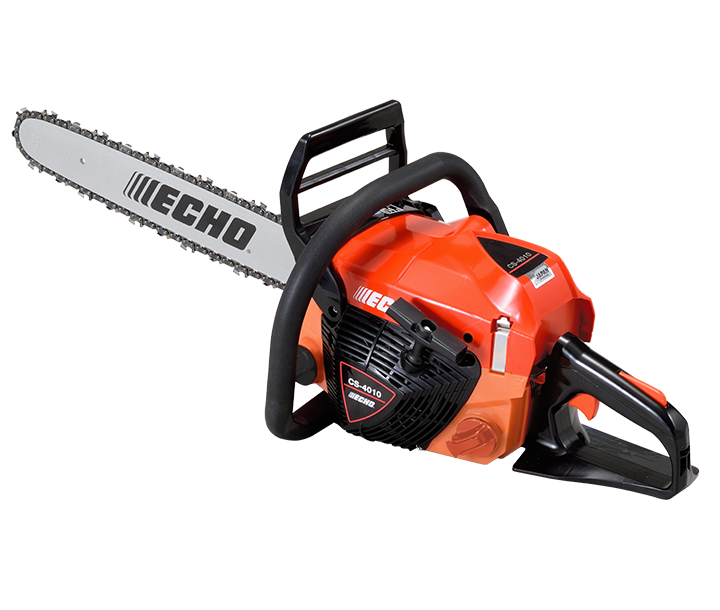

CS-4010

Lightweight 41.6cc petrol chainsaw, Made in Japan and ideal for all-round use. Fitted standard with 15" (38cm) guide bar.

A$749.00

A$679.00

Scroll

The CS-4010 is a truly versatile saw. Every aspect from its light weight (4.2 kg) and highly manoeuvrable frame to its powerful 41.6 cc professional grade engine has been fine tuned to create a saw that excels at almost all tasks. The advanced 2 stroke, scavenger type engine provides more power and less emissions than any other saw in the same class. Meaning whether you're pruning, cutting firewood or even felling, you'll have a saw that's perfect for the job.

Powerful and versatile

CS-4010 features a stratified 41.6cc professional 2 stroke engine for high performance.

A dry weight of just 4.2 KG and advanced anti-vibration technology improves user comfort.

Easy maintenance

Side access chain tensioner for quick, easy chain adjustments

Translucent fuel tank for easy level checks

Clip-type air-filter cover for easy maintenance

Tool-less oil/fuel caps for easy top-ups

G-Force Engine Air Pre-Cleaner reduces engine exposure to dirt and debris for less maintenance and longer life

Packed with features

Momentary stop switch for quick and easy engine restart

ES-Start for reduced effort starting

Dual drop prevention bar nuts stay attached to the side cover to reduce the risk of dropping

G-Force Engine Air Pre-Cleaner

Side access chain tensioner for quick chain adjustment

Rolling style chain catcher

Best Features

Ultra light weight

Engineered to weigh less whilst retaining robust durability.

Easy start

ECHO’s patented system for effortless starting.

Ease of use

Power on and get to work. Intuitive controls and features make your job a breeze.

Product Details

Engine displacement (cm³)	41.6
Output (kw)	1.91
Output (ps)	2.60
Dry Weight (kg)	4.2
Fuel tank capacity (l)	0.35
Chain Oil Tank Capacity (mL)	230
Fuel Consumption At Maximum Engine Power (L/h)	1.04
Priming Pump	Yes
Ignition System	CDI
Start Assist System	ES-Start
Chain Brake	Inertia
Choke w/ Automatic Fast Idle Release	Yes
Chain Tensioner	Side
Saw Chain Pitch (inch)	0.325
Guide Bar Gauge (inch)	0.050
Applicable Bar Length (cm/inch) ¹	38, 45 / 15, 18
Vibration Front handle/Rear handle (m/s²)	2.7 / 5.3
Sound power level (dB(A))	109.4
Sound pressure level (dB(A))	100.4
CO² (g/kW・h) ²	804

1: Not all lengths available in every country. Available bar lengths may incur differing RRPs. Please check with your local dealer.
2: This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
