The ECHO CS-7310SX brings true power and manoeuvrability to the professional. The powerful 73.5cc 2 stroke engine generates massive torque and provides exceptional cutting performance for heavy duty felling. Weighing just 6.8kg with ergonomic and robust construction it is ideal for the most challenging professional jobs. Genuine ECHO bars with D009 mounts and replaceable noses are available in 18", 20", 24", and 28" length

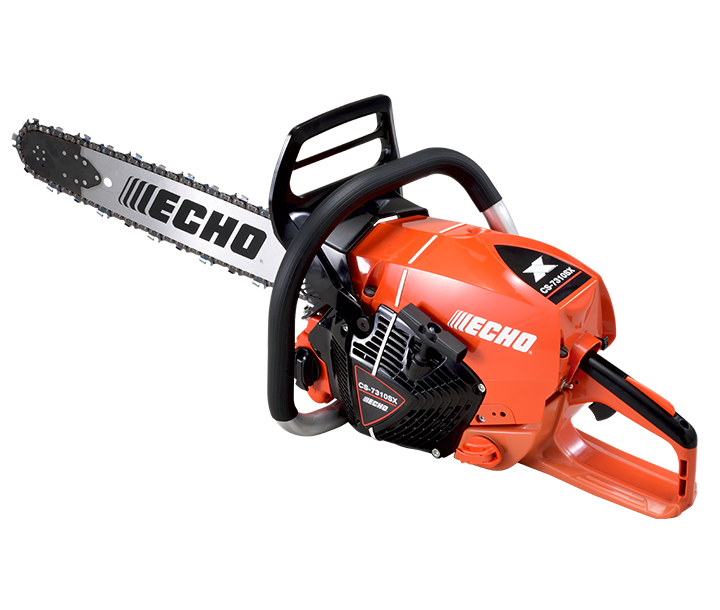

CS-7310SX
73.5cc heavy duty professional chain saw. Fitted standard with 20" (50cm) guide bar.
A$2,149.00
Where to buy
Scroll
Rugged, powerful and highly manoeuvrable
The CS-7310SX has been designed from the ground up for professional forestry use. Each component and every feature from the magnesium crankcase, side cover, and starter cover to the heavy duty high flow air cleaner and G-force pre-cleaner has been specifically designed to create a tool you can depend on, day in, day out.
Centrifugal separation dust free system
The newly developed G-force engine air pre-cleaner massively reduces the need for maintenance by keeping the internal components free from dust and debris.
Features for professionals
Magnesium side cover, starter cover and crankcase
19mm captive bar nuts as standard
Centrifugal air pre-cleaner with system large, pleated air filter
Translucent fuel tank
Replaceable sprocket noses
Range of bar options up to 28"
Best Features
Powerful
Features one of ECHO’s most powerful engines.
Ergonomic
Designed to maximise efficiency and comfort.
Light weight
Engineered to weigh less whilst retaining robust durability.
Product Details
| Engine displacement (cm³) | 73.5 |
|---|---|
| Output (kw) | 4.1 |
| Output (ps) | 5.6 |
| Dry Weight (kg) | 6.8 |
| Fuel tank capacity (l) | 0.80 |
| Chain Oil Tank Capacity | 0.360 |
| Fuel Consumption At Maximum Engine Power (L/h) | 2.33 |
| Ignition System | CDI |
| Start Assist System | Decomp |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 3/8 |
| Guide Bar Gauge (inch) | 0.058 |
| Applicable Bar Length (cm/inch) 1 | 45, 50, 60, 70 / 18, 20, 24, 28 |
| Vibration Front handle/Rear handle (m/s²) | 4.2 / 3.8 |
| Sound power level (dB(A)) | 115.9 |
| Sound pressure level (dB(A)) | 107.0 |
| CO² (g/kW・h) 2 | 743 |
- 1
- Not all lengths available in every country. Available bar lengths may incur differing RRPs. Please check with your local dealer.
- 2
- This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
