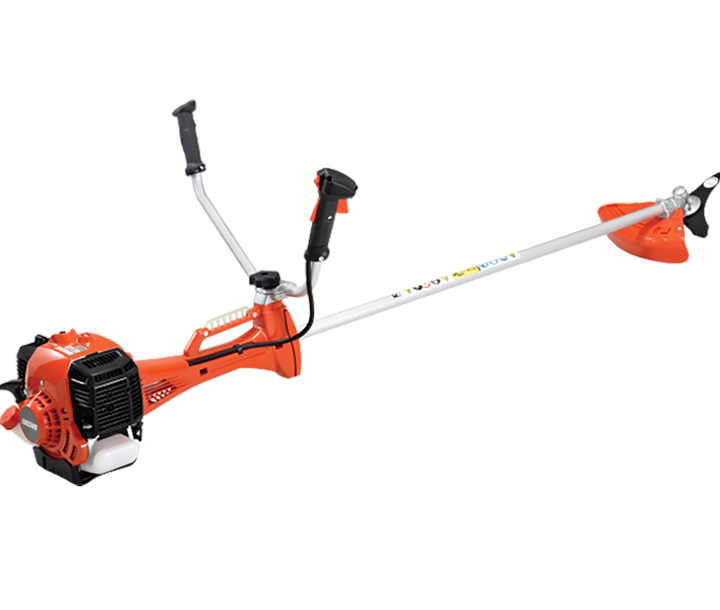

SRM-520ES/U

A highly durable, professional U-handle brushcutter, for the toughest applications.

A$1,449.00

Scroll

Advanced anti-vibration, a comfortable ECHO ergo pro harness and easy reliable starting means you can depend on the SRM-520ES/U to get through the job with ease, whether you're working with the supplied high volume trimmer head or 3-cutter metal blade.

Best Features

Powerful

Features one of ECHO’s most powerful engines.

Ergonomics

Designed to maximise efficiency and comfort.

Low Vibration

Vibration reduced by ECHO anti-vibe technology.

Product Details

Engine displacement (cm³)	50.2
Output (kw)	2.2
Output (ps)	2.9
Dry Weight (kg)	9.0
Fuel tank capacity (l)	0.69
Fuel Consumption At Maximum Engine Power (L/h)	1.23
Carburettor	Diaphragm
Start Assist System	ES-start
Drive shaft type	Solid shaft
Drive shaft diameter (mm)	8.0
Main pipe diameter (mm)	28.0
Gear reduction ratio	1.33
Standardised Nylon Head (Item Number)	X047-000222
Standardised Metal Blade (Item Number)	P021-014320
Vibration Left handle/Right handle (m/s) Metal Blade	3.4 / 3.2
Sound pressure level (dB(A)) Blade/Nylon head	99.2 / 99.5
Sound power level (dB(A)) Blade/Nylon head	110.1 / 111.3
CO² (g/kW・h) ¹	825
Vibration Left handle/Right handle (m/s) Nylon head	3.0 / 2.7
Standardised Metal Blade	3-cutter metal blade
Standardised Nylon Head	DS-5 M10L

1: This CO² measurement results from testing a (parent) engine representative of the engine type (engine family) over a fixed test cycle under laboratory conditions and does not imply or express any guarantee of the performance of a particular engine.
